Function from plot

#1 Posted: 6/6/2023 8:19:33 AM

Valery Ochkov

66 likes in 672 posts.

Group: User

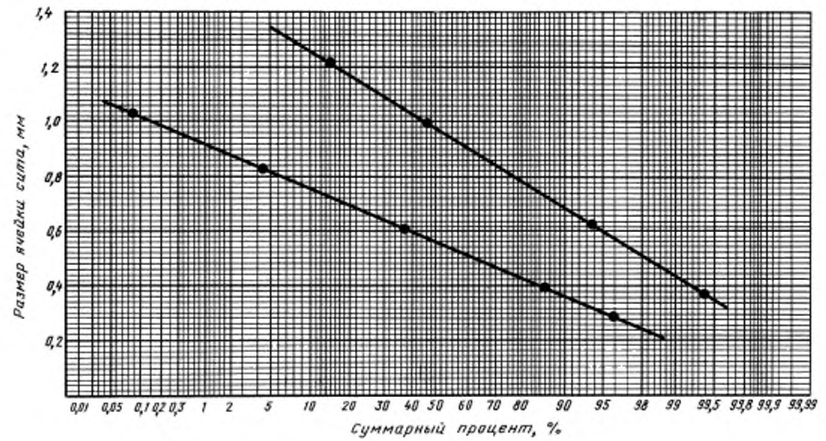

How can I get a function from this plot?

#2 Posted: 6/6/2023 8:59:59 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
How can I get a function from this plot ?

1. Probably from the expensive digitizer suggested by Richard [Mathsoft Collaboratory]
2. Piecewise from Tracer.
3. Try Mathsoft digitizer.
4. Smath difficult
At this point from the collected data set, fit a model function.
Cheers ... Jean.

1 users liked this post

Valery Ochkov 6/6/2023 10:24:00 AM

#3 Posted: 6/6/2023 10:05:20 AM

Brian Runagle

13 likes in 27 posts.

Group: User

Does this help?

Graphing.pdf (164.86 KiB) downloaded 940 time(s).

Brian

1 users liked this post

Valery Ochkov 6/6/2023 10:24:00 AM

#4 Posted: 6/6/2023 10:15:02 AM

⚜ Kenny Lemens, P.E. ᵂᴵ

85 likes in 179 posts.

Group: User

Greetings,

Wrote
How can I get a function from this plot? 🖼

That is a straight line on a semi-log graph; you can reference this handout: https://inside.mines.edu/~epoeter/_GW/LAB/EquationsOfStraightLinesOnDifferentTypesGraphPaper.pdf

Per this handout, your equation should be

y = b + m*log(x)

where:

m = difference in y over one log cycle of x
b = y value corresponding to x=1

May this be of Good Help;
⚜ Kenny Lemens, P.E. ᵂᴵ

"No matter where you go, there you are." -Buckaroo BanzaiHotkeys: https://en.smath.com/forum/resource.ashx?a=45771&b=2

1 users liked this post

Valery Ochkov 6/6/2023 10:24:00 AM

#5 Posted: 6/6/2023 12:44:34 PM

Alvaro

1,082 likes in 1,755 posts.

Group: User

Wrote
How can I get a function from this plot?

Hi. You can try this post Approximation of a functional curve in a digital image or this other one: Embedding images into a plot

Best regards.
Alvaro.

2 users liked this post

Вячеслав Мезенцев 6/6/2023 2:16:00 PM, Valery Ochkov 6/6/2023 1:45:00 PM

#6 Posted: 6/6/2023 2:19:52 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Wrote
How can I get a function from this plot ?

Hello Valery,
some Smath digitizing utilities
Cheers, Jean.

Digitize Tracer 15.sm (28.83 KiB) downloaded 903 time(s).
Digitize OVNI Copy.sm (69.15 KiB) downloaded 922 time(s).
Digitize Contour Isocurve Himmelblau Copy.sm (106.67 KiB) downloaded 939 time(s).
Digitize Curve.sm (295.86 KiB) downloaded 902 time(s).
Digitize Contour.sm (829.05 KiB) downloaded 929 time(s).
Digitize Clean_Strip_Smooth.sm (1.76 MiB) downloaded 912 time(s).

#7 Posted: 6/6/2023 3:29:30 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

... this Himmelblau has resident Gray matrix.

Digitize Contour Isocurve Himmelblau Copy.sm (107.19 KiB) downloaded 911 time(s).

1 users liked this post

Valery Ochkov 6/7/2023 1:02:00 AM

#8 Posted: 6/6/2023 5:11:16 PM

Alvaro

1,082 likes in 1,755 posts.

Group: User

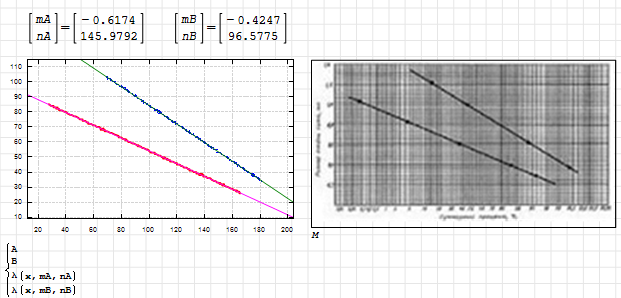

Hi. Hope this helps.

Modeling a functional curve in a digital image.pdf (860.39 KiB) downloaded 506 time(s).
Modeling a functional curve in a digital image.sm (1 MiB) downloaded 962 time(s).

Best regards.
Alvaro.

3 users liked this post

Valery Ochkov 6/7/2023 1:02:00 AM, sergio 6/7/2023 6:34:00 AM, darlbeck 6/7/2023 2:59:00 PM
