list calculation

#1 Posted: 12/7/2025 6:52:39 AM

0 likes in 5 posts.

Group: User

Hi~ I'm studyng building structural analysis.

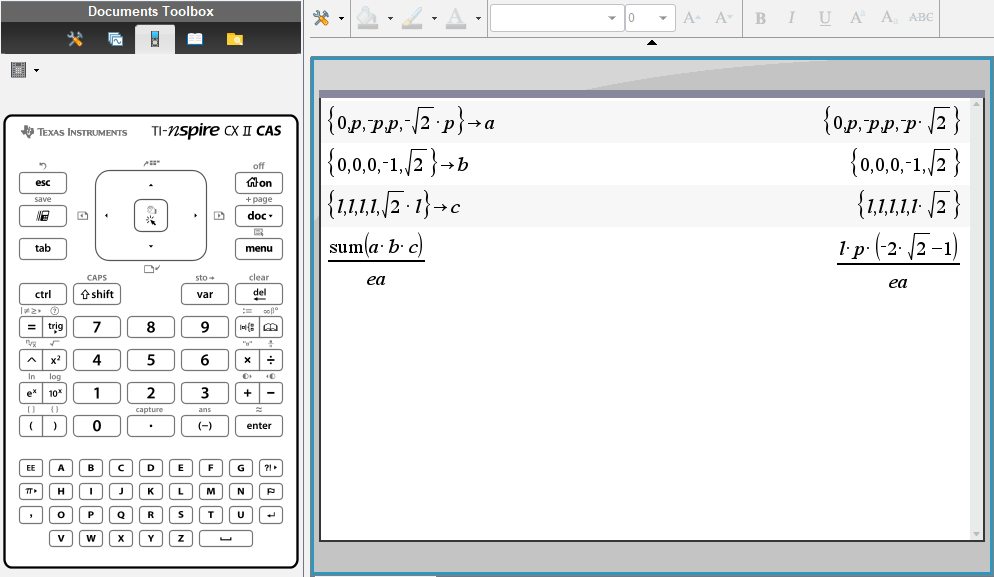

When I calculate the displacement, I have to use list calculation like below using Ti nspire.

I would try this way in smath studio, but failed.

How can I calculate in smath studio?

thank you for your help.

#2 Posted: 12/7/2025 9:23:36 AM

41 likes and 1 dislikes in 67 posts.

Group: User

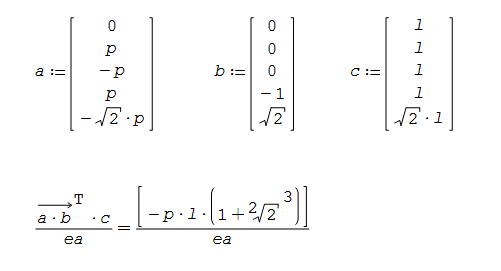

The following uses vectors rather than lists:

You beat me to it by seconds!

Edited 12/7/2025 9:24:32 AM

1 users liked this post

kimkim 12/7/2025 2:32:35 PM

#3 Posted: 12/7/2025 9:29:24 AM

0 likes in 5 posts.

Group: User

Thank you, StvMath.

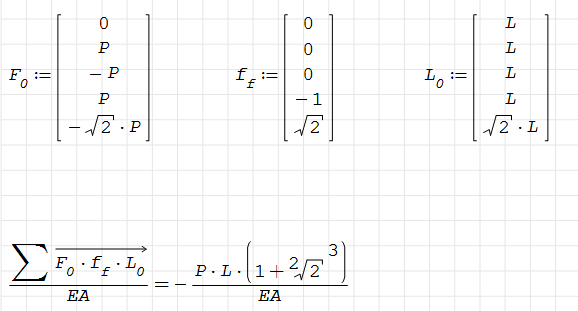

I've just found the solution, but I think your way is more efficient than mine !!

Thank you again.

Edited 12/7/2025 9:29:46 AM

#4 Posted: 12/7/2025 12:34:43 PM

1,292 likes in 2,215 posts.

Group: Moderator

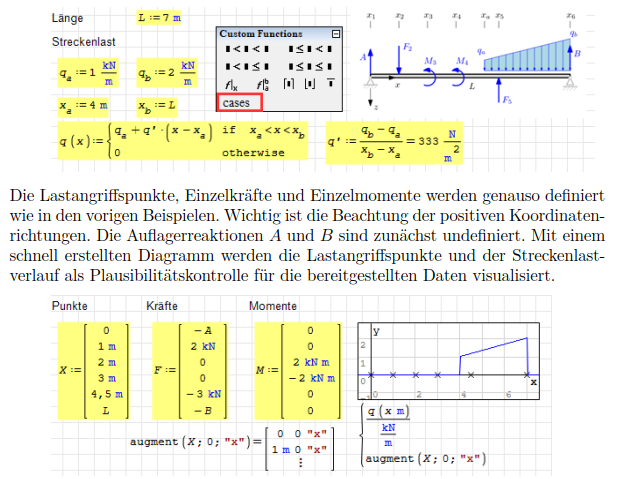

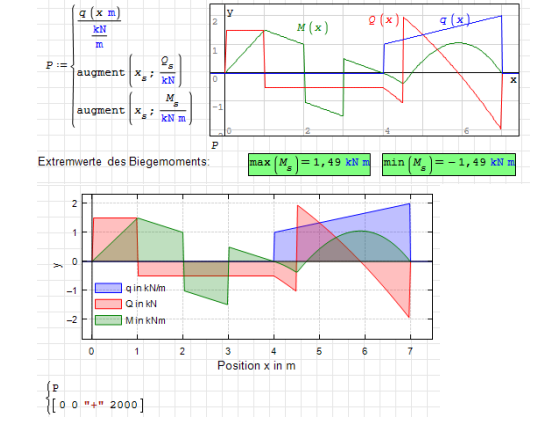

I have just submitted a book on Engineering Mechanics with SMath Studio for publishing. It is to appear early next year. The examples are already available at Github https://github.com/sn-code-inside/Technische-Mechanik-mit-SMath.

See example 5.5.

Edited 12/7/2025 5:19:11 PM

Martin KraskaPre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

2 users liked this post

kimkim 12/7/2025 2:32:30 PM, sergio 12/7/2025 4:48:11 PM

#5 Posted: 12/7/2025 4:54:33 PM

116 likes in 332 posts.

Group: User

Martin, the link you posted mistakenly incorporates the GitHub string at the beginning, nullifying the connection; you should correct it.
