Tangent/Normal

#1 Posted: 9/15/2017 10:17:00 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

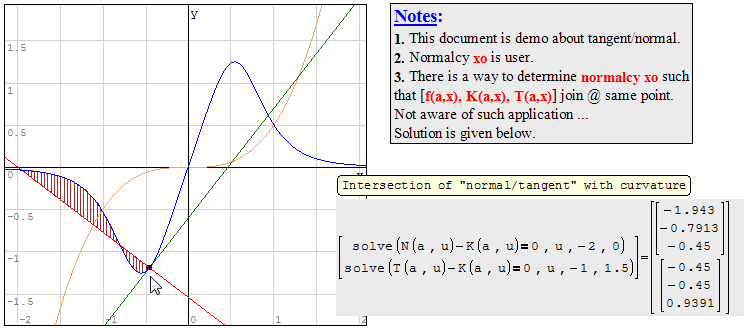

Maths Tangent.sm (24.15 KiB) downloaded 781 time(s).

2 users liked this post

Davide Carpi 10/6/2017 4:53:00 AM, Andrey Ivashov 9/15/2017 10:51:00 AM

#2 Posted: 9/15/2017 12:28:29 PM

алексей

17 likes in 78 posts.

Group: User

From Maple.

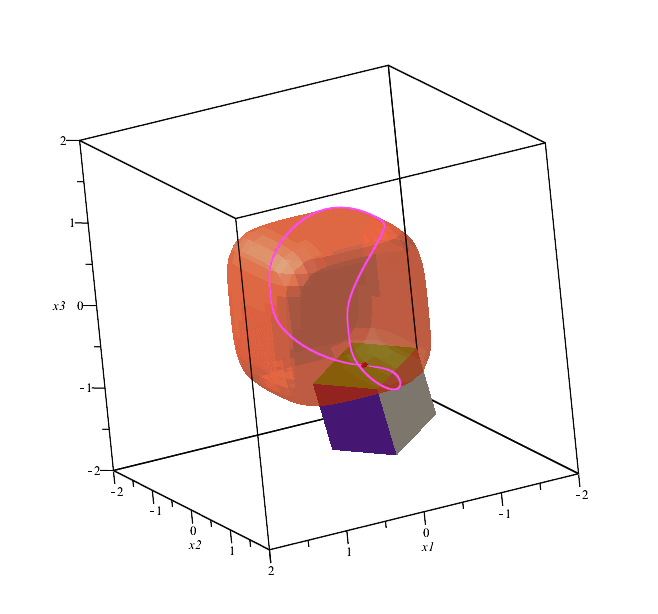

One face of the cube belongs to the tangent plane to the surface at each point of the curve.
http://www.mapleprimes.com/posts/208425-Tangent-Plane-As-The-Square-At-Any-Point-Of-A-Smooth-Surface-#comment202577

#3 Posted: 9/15/2017 4:42:49 PM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Superb application ! ... Thanks

#4 Posted: 10/6/2017 3:19:23 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

The tangent to the curve and the normal to the surface
The curve is given as the intersection line of two surfaces f1 and f2.
It can be seen that the normal to the sphere passes through its center.

Normal'4.sm (52.09 KiB) downloaded 774 time(s).

2 users liked this post

Davide Carpi 10/6/2017 4:53:00 AM, Oscar Campo 10/6/2017 9:30:00 PM

#5 Posted: 10/6/2017 11:04:20 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Thanks for that one, added in dedicated file.
BTW, thanks for your latest meshed Torus, nice.
I was wondering if you can animate two more:

1. Add a point on Analemma wrapped on the sphere, animate the point ?
2. Animate [slide] the Advection on the graph ? Very nice in Mathcad !

Cheers, Thanks in advance: Jean

Solve Tridiagonal [ADVECTION].sm (56.63 KiB) downloaded 634 time(s).

Analemma.sm (139.1 KiB) downloaded 756 time(s).

#6 Posted: 10/6/2017 4:24:24 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Flat animation we have already done:
https://en.smath.info/forum/resource.ashx?a=14479&b=2

One of the variants on the sphere.Unfortunately, the graph looks flat.

Analemma Anim.sm (31.07 KiB) downloaded 771 time(s).

1 users liked this post

Davide Carpi 10/10/2017 11:51:00 AM

#7 Posted: 10/6/2017 11:28:48 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Fixed bug

Analemma Anim1.sm (36.26 KiB) downloaded 720 time(s).

1 users liked this post

Davide Carpi 10/10/2017 11:51:00 AM

#8 Posted: 10/9/2017 5:39:33 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

The tangential plane and the normal to the surface

Normal'5.sm (79.91 KiB) downloaded 752 time(s).

1 users liked this post

Davide Carpi 10/10/2017 11:51:00 AM

#9 Posted: 10/10/2017 4:19:26 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Normal'8.sm (55.02 KiB) downloaded 785 time(s).Adding
Normal'7.sm (54.56 KiB) downloaded 790 time(s).

1 users liked this post

Davide Carpi 10/10/2017 11:51:00 AM

#10 Posted: 4/10/2018 5:15:08 AM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Tangent, normal and binormal vectors
Curves can be specified parametrically, algebraically or by a coordinate matrix

Spiral2.sm (36.43 KiB) downloaded 707 time(s).
Sinus.sm (48.77 KiB) downloaded 761 time(s).
VivianiSph.sm (37.41 KiB) downloaded 725 time(s).
VivianiTor.sm (52.14 KiB) downloaded 788 time(s).

1 users liked this post

Davide Carpi 4/11/2018 7:16:00 PM

#11 Posted: 4/10/2018 8:20:38 AM

Jean Giraud

983 likes in 6,866 posts.

Group: User

Thanks Ber7, saved.

#12 Posted: 4/11/2018 4:13:04 PM

Fridel Selitsky

520 likes in 451 posts.

Group: User

Lorenz attractor
