Wavefunction contour plot

#1 Posted: 5/15/2026 8:10:27 AM

0 likes in 9 posts.

Group: User

Dear all,

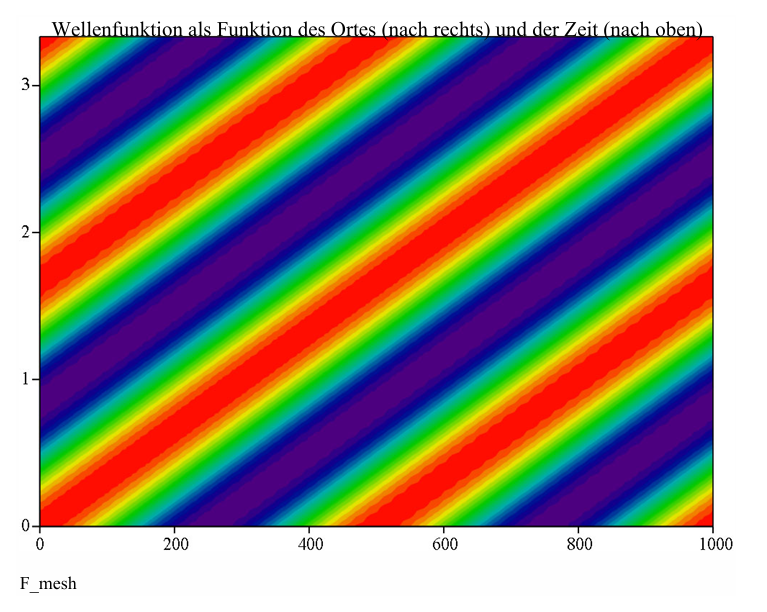

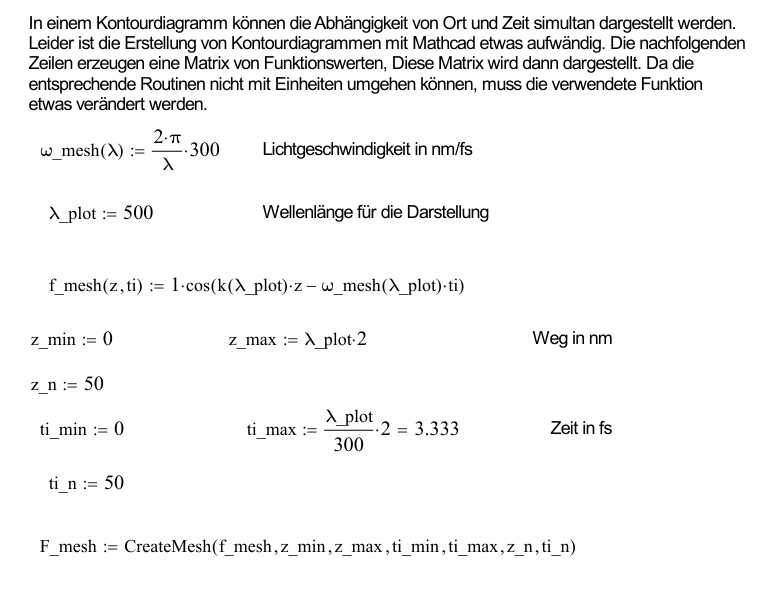

in a Mathcad file, I created a contour plot to display the dependence of place and time of the wavefunction simultaneously. In the mathcad file, I created a matrix without units (see in screenshot).

Now I would like to create this file in SMath. Unfortunately, simple copy and paste doesn't work

I have attached my own SMath file, in which I tried something out. Unfortunately, I am at a loss.

Does anyone have an idea or a helpful tip?

Thanks in advance

wavefunction.sm (11.29 KiB) downloaded 70 time(s).

#2 Posted: 5/15/2026 11:38:39 AM

Martin Kraska

1,350 likes in 2,262 posts.

Group: Moderator

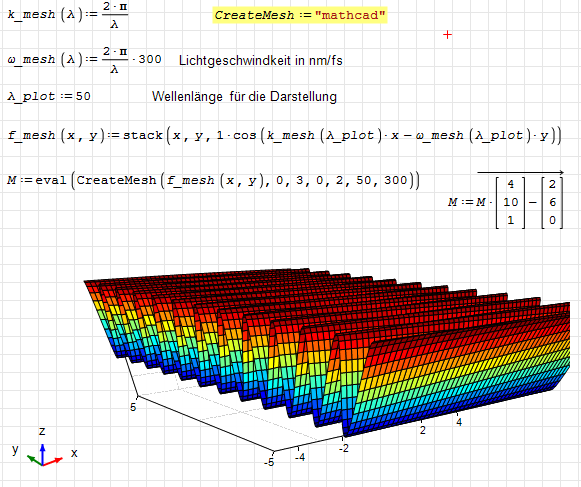

You can use the Maxima-Plugin or the image region.

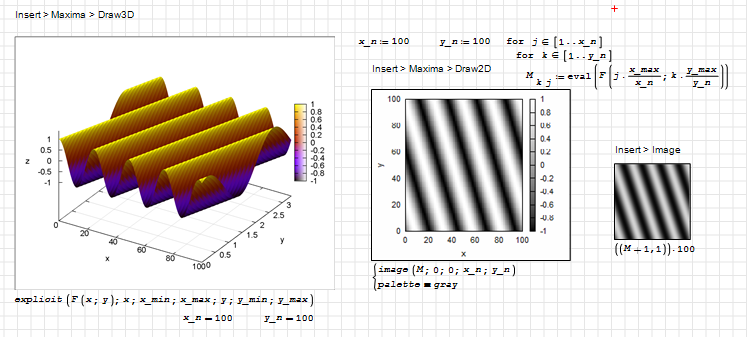

Explicit 3D plotting works if the function is properly translated to Maxima. For instructions see
https://opus4.kobv.de/opus4-fhbrb/solrsearch/index/search/start/0/rows/100/sortfield/score/sortorder/desc/searchtype/simple/query/smath

wavefunction_Kr.sm (85.13 KiB) downloaded 63 time(s).[attach]

Technische Mechanik mit SMath Studio: https://link.springer.com/book/10.1007/978-3-658-50592-9

3 users liked this post

ioan92 5/16/2026 9:01:46 PM, Caro 5/15/2026 4:23:23 PM, sergio 5/15/2026 1:40:21 PM

#3 Posted: 5/15/2026 3:11:48 PM

Alvaro

1,102 likes in 1,777 posts.

Group: User

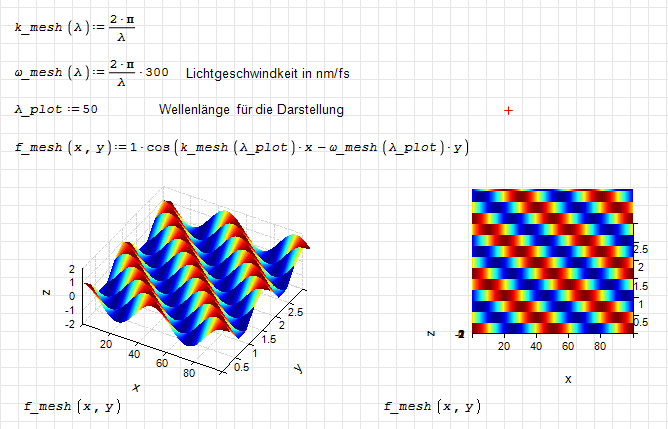

Hi. This is also another option, with the 3D plot plugin ( https://smath.com/en-US/forum/topic/vbCaKa/3D-Plot-Region ), while it has some limitations, it fulfills its purpose on many occasions.

wavefunction.sm (12.04 KiB) downloaded 61 time(s).

Also remember that default ORIGIN in mathcad is zero, but SMath origin is one, and you can't change it.

Best regards.
Alvaro.

2 users liked this post

ioan92 5/16/2026 9:02:09 PM, Caro 5/15/2026 4:23:20 PM

#4 Posted: 5/15/2026 4:29:44 PM

Caro

0 likes in 9 posts.

Group: User

THANK YOU Martin and Alvaro!

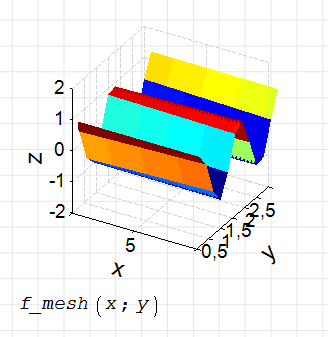

I already had the 3D plot plugin so I started with this option. However my SMath changed some settings for the plot's format and color.

Alvaro, would you please be so kind as to show me the specific settings for the plot?

#5 Posted: 5/15/2026 7:25:48 PM

Alvaro

1,102 likes in 1,777 posts.

Group: User

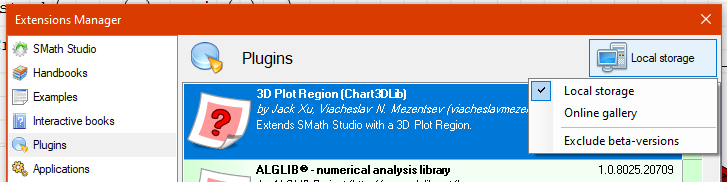

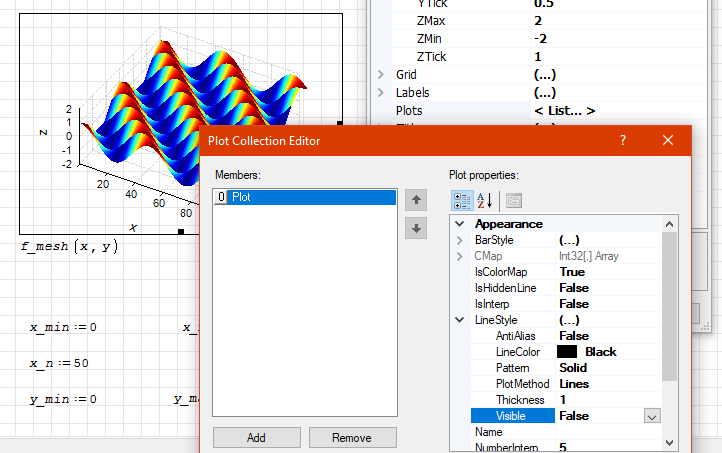

Hi. It seems that I'm using an old plugin version, which not save the plot configuration. I need to deselect "exclude beta versions" to see the update. This would be the configuration that was not saved

Best regards.
Alvaro.

2 users liked this post

Caro 5/16/2026 2:33:49 PM, ioan92 5/16/2026 9:03:14 PM

#6 Posted: 5/16/2026 2:37:56 PM

Caro

0 likes in 9 posts.

Group: User

Thank you Alvaro!

I have added your plot configurations. Sadly, it doesn't look good

I think I'll have to play around with the configurations but having the plot itself was a hugh help!

#7 Posted: 5/16/2026 5:45:00 PM

Alvaro

1,102 likes in 1,777 posts.

Group: User

Hi. It seems that you are using the old plugin version too. Please uncheck "Exclude beta versions" from the plugin manager, and go online to verify if you have the latest version.

I'm not sure, but it seems to me that this version doesn't save the plot setup either. Anyway, it appears to be a much improved version compared to the previous one.

Best regards.
Alvaro.

2 users liked this post

Caro 5/17/2026 11:28:40 AM, sergio 5/16/2026 6:01:59 PM

#8 Posted: 5/17/2026 11:35:01 AM

Caro

0 likes in 9 posts.

Group: User

Thank you, Alvaro!

I downloaded the newest version. The plot looks better but nothing like your screenshot.
I think I'll have to look in my SMath settings because the plots with the maxima plugin from Martin don't look good either.

#9 Posted: 5/17/2026 2:15:06 PM

Alvaro

1,102 likes in 1,777 posts.

Group: User

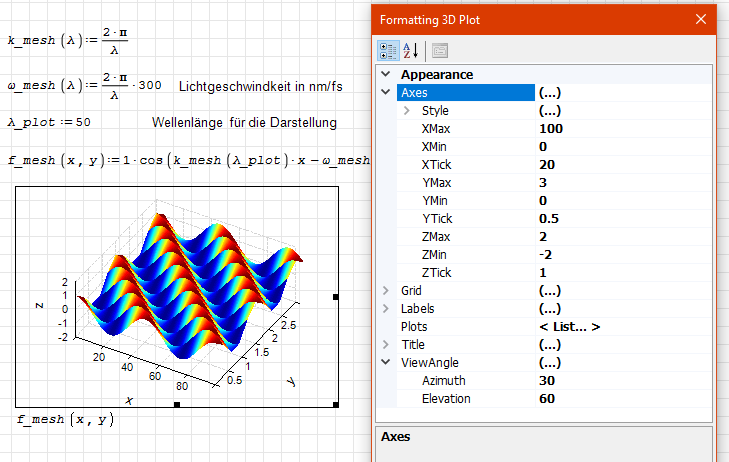

Hi. Please, try this workaround. It has a scale factor and an offset, useful until the plugin has the functionality to save the configuration. It should look like this when running, without any modifications.

wave.sm (8.09 KiB) downloaded 23 time(s).

Best regards.
Alvaro.
